Introduction

This article covers tensor manipulation operations in PyTorch, including splitting (split, unbind, chunk), expanding (repeat, cat, stack), and modifying (using indexing and slicing, gather, scatter).

Experimental Enviroment

This series of experiments uses the following environment setup:

conda create -n DL python==3.11

conda activate DL

conda install pytorch torchvision torchaudio pytorch-cuda=12.1 -c pytorch -c nvidia

PyTorch Data Structures

Tensor

A Tensor is the primary data structure in PyTorch for representing multi-dimensional data, similar to multi-dimensional arrays, used for storing and manipulating numerical data.

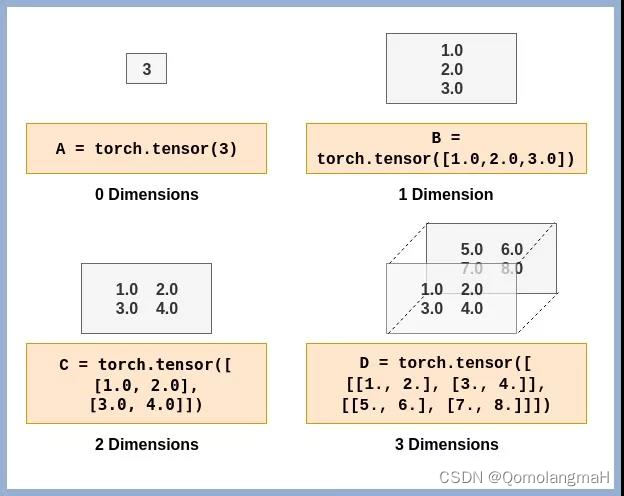

Dimensions

Tensor dimensions refer to the number of axes or rank. In PyTorch, use the size() method to get dimension information and dim() to get the number of axes.

Data Types

PyTorch tensors support various data types:

• torch.float32 or torch.float: 32-bit floating-point tensor.
• torch.float64 or torch.double: 64-bit floating-point tensor.
• torch.float16 or torch.half: 16-bit floating-point tensor.
• torch.int8: 8-bit integer tensor.
• torch.int16 or torch.short: 16-bit integer tensor.
• torch.int32 or torch.int: 32-bit integer tensor.
• torch.int64 or torch.long: 64-bit integer tensor.
• torch.bool: Boolean tensor storing True or False.

GPU Acceleration

Tensors can leverage GPU acceleration for parallel computation, speeding up model training.

Tensor Mathematical Operations

PyTorch provides extensive functions for tensor operations, including mathematical computations, statistical calculations, reshaping, indexing, and slicing. These operations efficiently utilize GPU parallelism.

Vector Operations

Covers addition, subtraction, multiplication, division, scalar multiplication, dot product, outer product, norms, and broadcasting.

Matrix Operations

Includes basic operations, transpose, determinant, trace, adjugate matrix, inverse, eigenvalues, and eigenvectors.

Vector Norms, Matrix Norms, and Spectral Radius

Explains various norms (0, 1, 2, p, infinity) and spectral radius.

1D Convolution Operations

Discusses stride, padding, wide/narrow/equal-width convolutions, and correlation vs. convolution.

2D Convolution Operations

Covers the mathematical principles of 2D convolution.

High-Dimensional Tensors

Explores multiplication and convolution operations for 4D and 5D tensors.

Tensor Statistical Calculations

Detailed explanations of statistical computations on tensors.

Tensor Operations

Tensor Reshaping

Operations for changing tensor shape.

Indexing and Slicing

Methods to access specific elements or subsets of tensors.

Tensor Modification

Splitting Tensors

split

Splits a tensor along a specified dimension into multiple tensors.

import torch

matrix = torch.tensor([[1, 2, 3], [4, 5, 6]])
part1, part2 = matrix.split(2, dim=1)
print(part1)  # Output: tensor([[1, 2], [4, 5]])
print(part2)  # Output: tensor([[3], [6]])

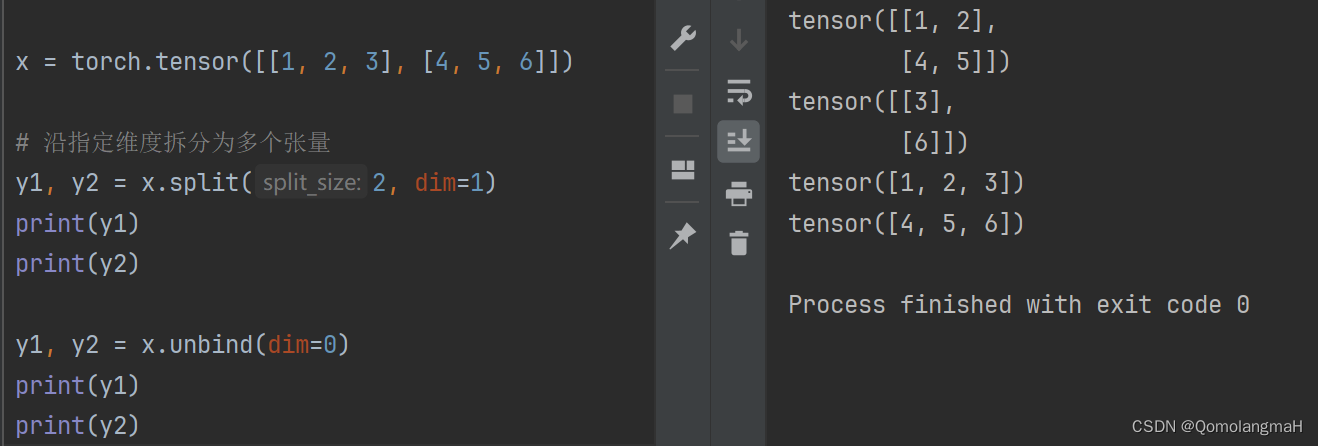

unbind

Splits a tensor along a specified dimension and returns a list of tensors.

import torch

matrix = torch.tensor([[1, 2, 3], [4, 5, 6]])
row1, row2 = matrix.unbind(dim=0)
print(row1)  # Output: tensor([1, 2, 3])
print(row2)  # Output: tensor([4, 5, 6])

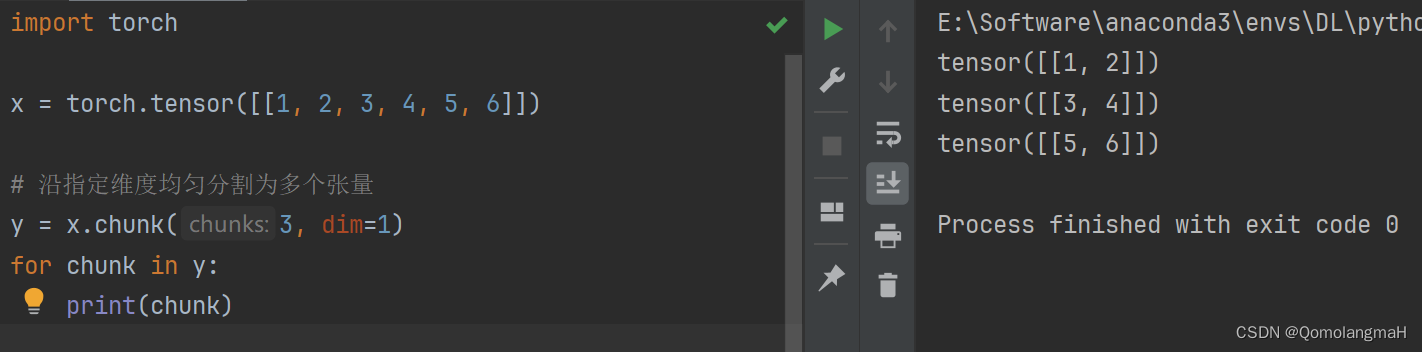

chunk

Evenly splits a tensor along a specified dimension into multiple tensors.

import torch

vector = torch.tensor([[1, 2, 3, 4, 5, 6]])
segments = vector.chunk(3, dim=1)
for segment in segments:
    print(segment)  # Output: tensor([[1, 2]]), tensor([[3, 4]]), tensor([[5, 6]])

Expanding Tensors

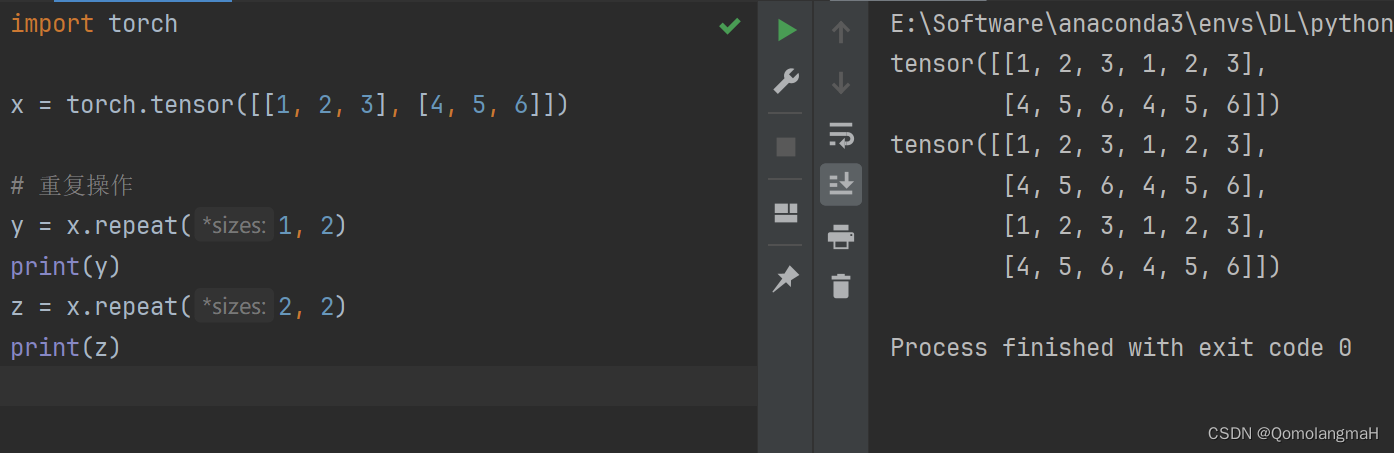

repeat

Replicates tensor elements by repeating them.

import torch

matrix = torch.tensor([[1, 2, 3], [4, 5, 6]])
repeated_horizontally = matrix.repeat(1, 2)
print(repeated_horizontally)  # Output: tensor([[1, 2, 3, 1, 2, 3], [4, 5, 6, 4, 5, 6]])
repeated_both = matrix.repeat(2, 2)
print(repeated_both)  # Output: tensor([[1, 2, 3, 1, 2, 3], [4, 5, 6, 4, 5, 6], [1, 2, 3, 1, 2, 3], [4, 5, 6, 4, 5, 6]])

cat

Concatenates multiple tensors along a specified dimension.

import torch

matrix_a = torch.tensor([[1, 2, 3], [4, 5, 6]])
matrix_b = torch.tensor([[7, 8, 9], [10, 11, 12]])
concatenated = torch.cat((matrix_a, matrix_b), dim=0)
print(concatenated)  # Output: tensor([[1, 2, 3], [4, 5, 6], [7, 8, 9], [10, 11, 12]])

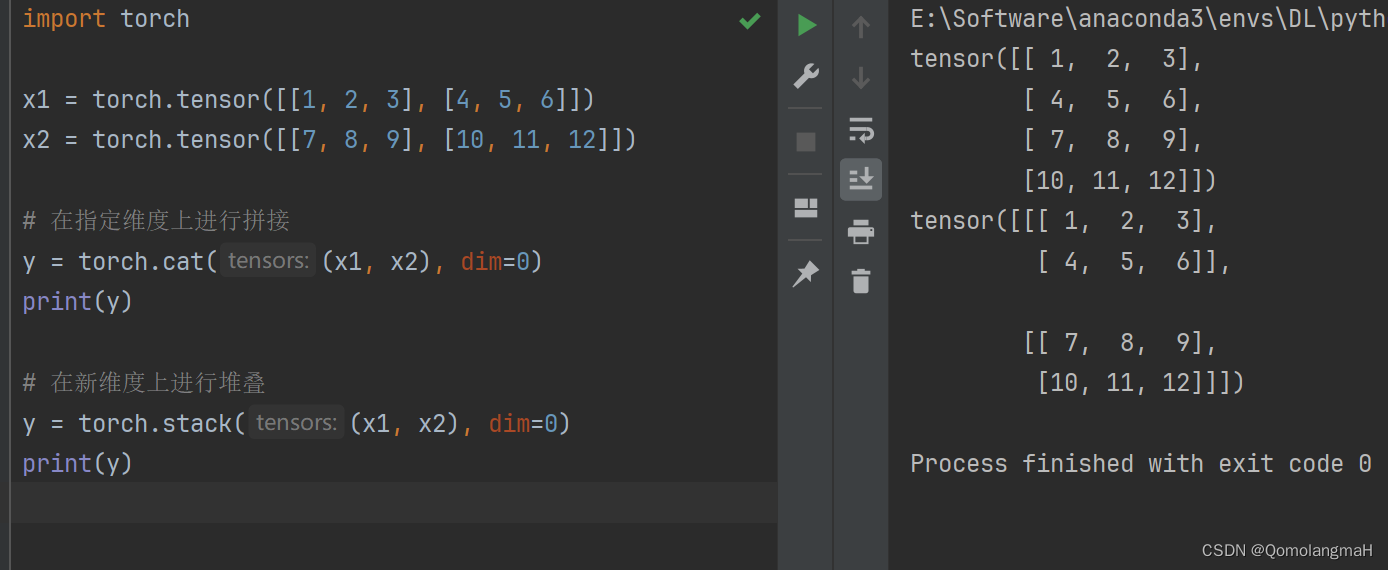

stack

Stacks multiple tensors along a new dimension.

import torch

matrix_a = torch.tensor([[1, 2, 3], [4, 5, 6]])
matrix_b = torch.tensor([[7, 8, 9], [10, 11, 12]])
stacked = torch.stack((matrix_a, matrix_b), dim=0)
print(stacked)  # Output: tensor([[[1, 2, 3], [4, 5, 6]], [[7, 8, 9], [10, 11, 12]]])

Modifying Tensors

Using Indexing and Slicing for Modification

Modify specific elements or subsets of a tensor using indexing and slicing.

import torch

matrix = torch.tensor([[1, 2, 3], [4, 5, 6]])
matrix[0, 1] = 9  # Modify element at row 0, column 1 to 9
print(matrix)  # Output: tensor([[1, 9, 3], [4, 5, 6]])

gather

Collects values from an input tensor along a specified dimension based on indices.

import torch

matrix = torch.tensor([[1, 2, 3], [4, 5, 6]])
index_tensor = torch.tensor([[0, 0, 1], [1, 0, 0]])
collected = torch.gather(matrix, 1, index_tensor)
print(collected)  # Output: tensor([[1, 1, 2], [5, 4, 4]])

scatter

Scatters values into a new tensor based on specified indices.

import torch

empty_matrix = torch.zeros(2, 4)
index_tensor = torch.tensor([[0, 1], [2, 3]])
value_tensor = torch.tensor([[1, 2], [3, 4]], dtype=torch.float)
scattered = empty_matrix.scatter(1, index_tensor, value_tensor)
print(scattered)  # Output: tensor([[1., 2., 0., 0.], [0., 0., 3., 4.]])
