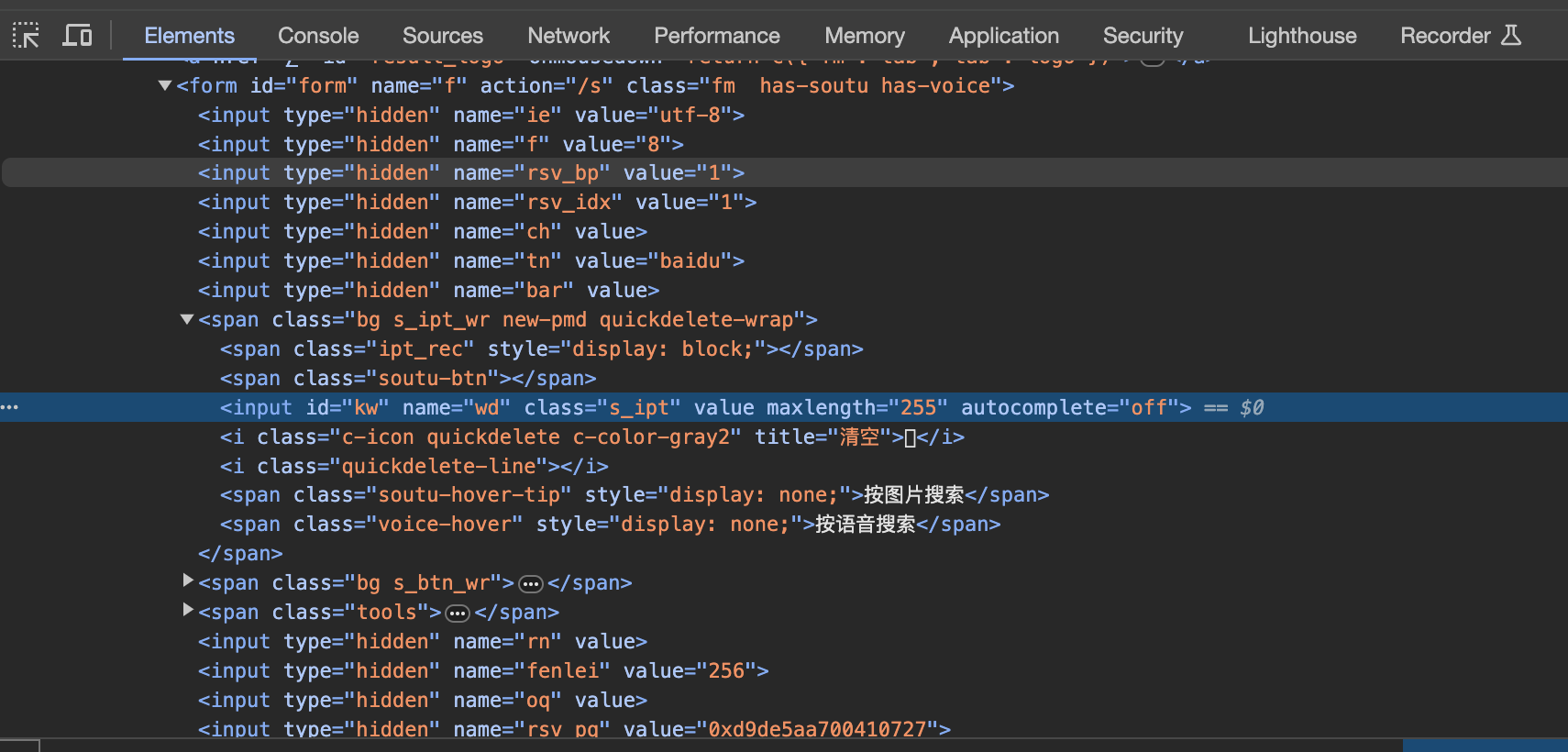

1.1 Basic Concepts of Elements

• Element: Consists of an opening tag, closing tag, and the text content between them.
• Element Information: The tag name and attributes of the element.
• Element Hierarchy: The nested structure of elements.
• Element Locating: Locating elements using their information or hierarchical structure.

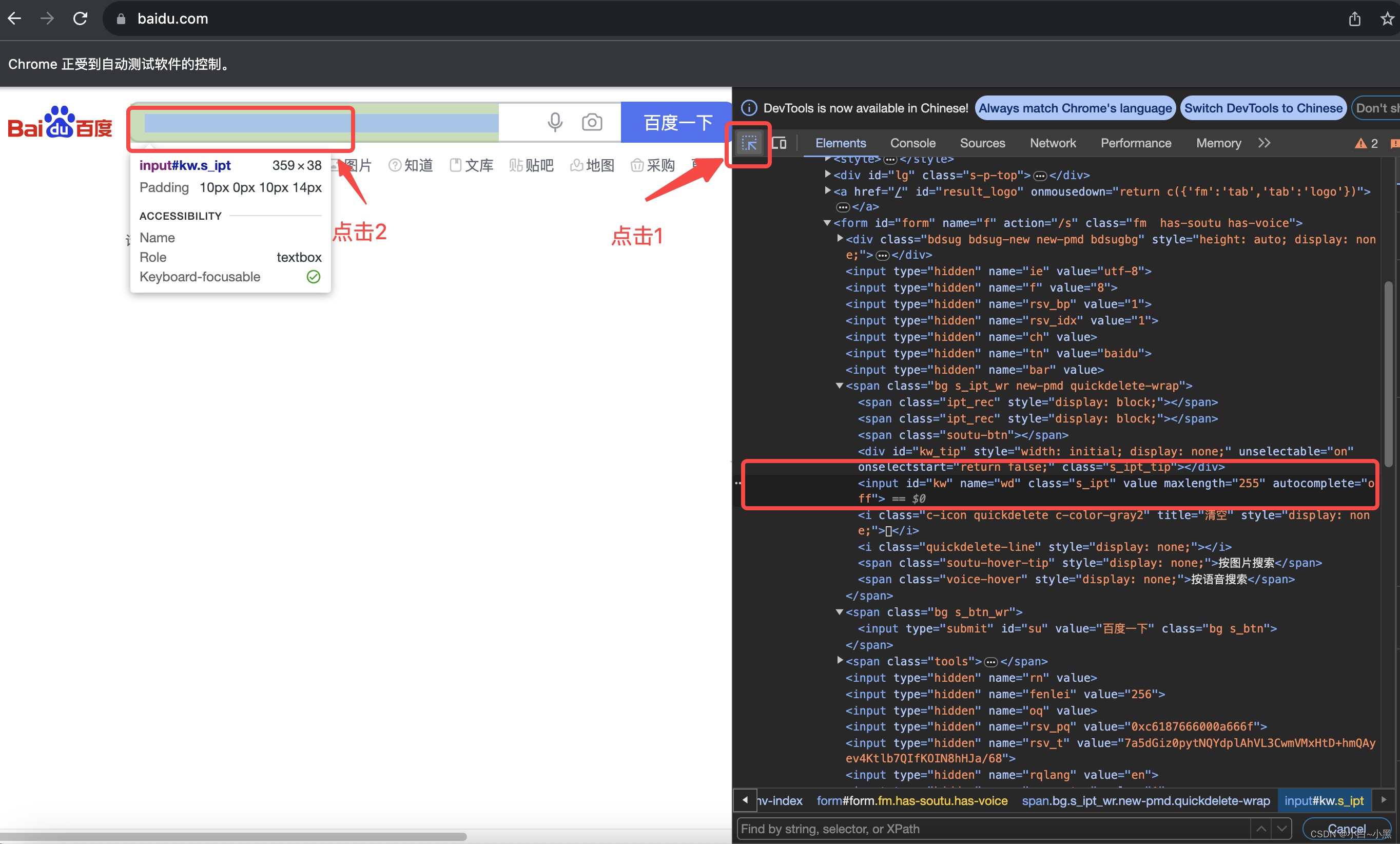

1.2 Browser Developer Tools

• Click the element inspector button at the top-left corner of the browser developer tools.
• Click the element you want to inspect.

1.3 Common Web Element Locating Methods

• By ID: Locate using the id attribute.
• By Name: Locate using the name attribute.
• By Class Name: Locate using the class attribute.
• By Tag Name: Locate using the tag name.
• By Link Text: Locate anchor tags using the full link text.
• By Partial Link Text: Locate anchor tags using a portion of the link text.
• When exact information is insufficient, use XPath or CSS for precise locating.
  • XPath: A language to locate nodes in XML/HTML documents using path expressions (e.g., /html/body/a).
  • CSS: Cascading Style Sheets can also select elements via selectors.

1.3.1 Locating by ID

• Elements with a unique id attribute (IDs are unique in standard HTML).
• Method: find_element_by_id(id) – id is the attribute value.

Code Example (by_id):

import time
from selenium import webdriver

browser = webdriver.Chrome()
browser.get("http://www.baidu.com")
browser.find_element_by_id("kw").send_keys("Baidu Search")
time.sleep(3)
browser.quit()

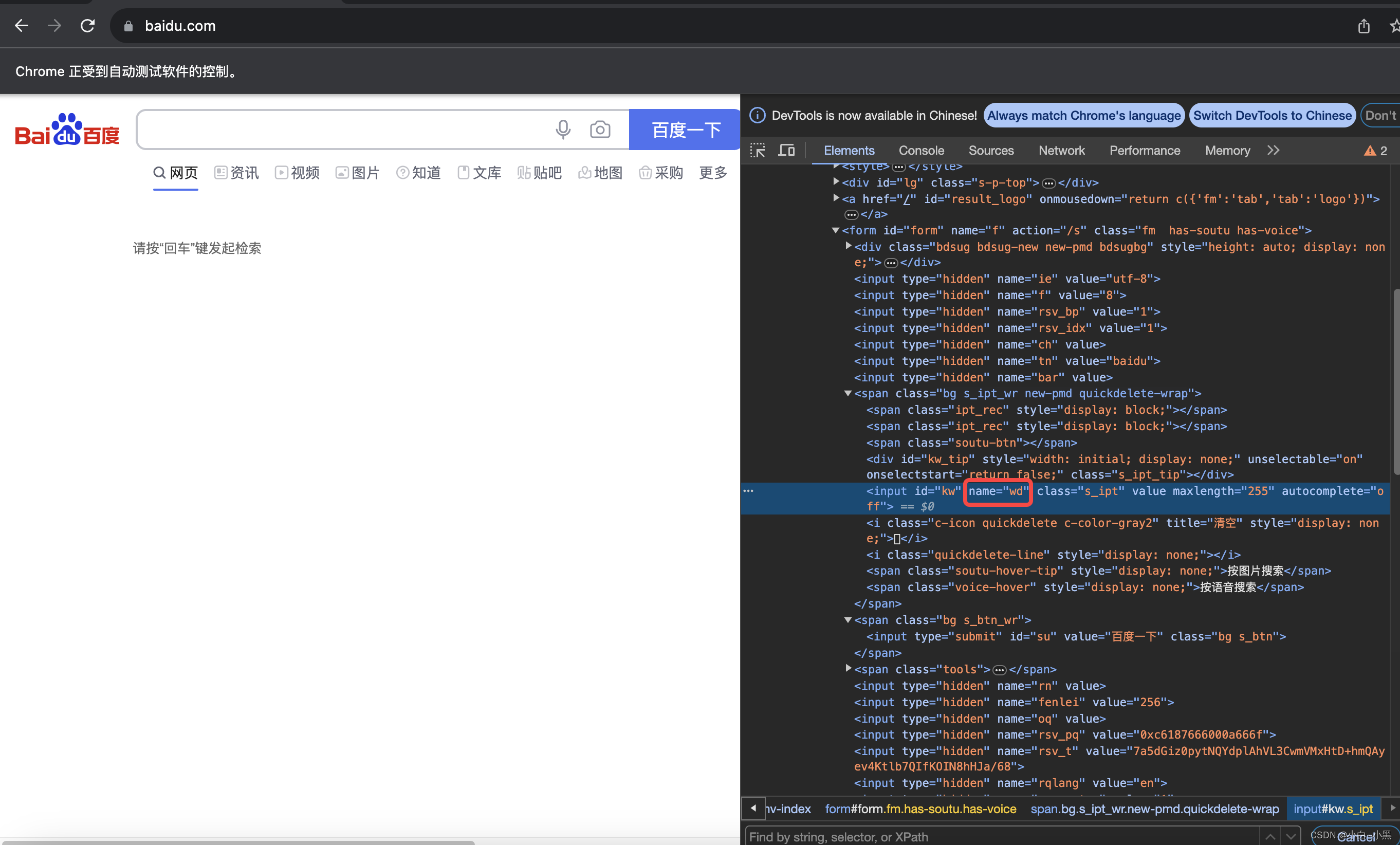

1.3.2 Locating by Name

• Elements with a name attribute (names can repeat in HTML).
• Method: find_element_by_name(name).

Code Example (by_name):

import time
from selenium import webdriver

browser = webdriver.Chrome()
browser.get("http://www.baidu.com")
browser.find_element_by_name("wd").send_keys("This is input located by name")
time.sleep(3)
browser.quit()

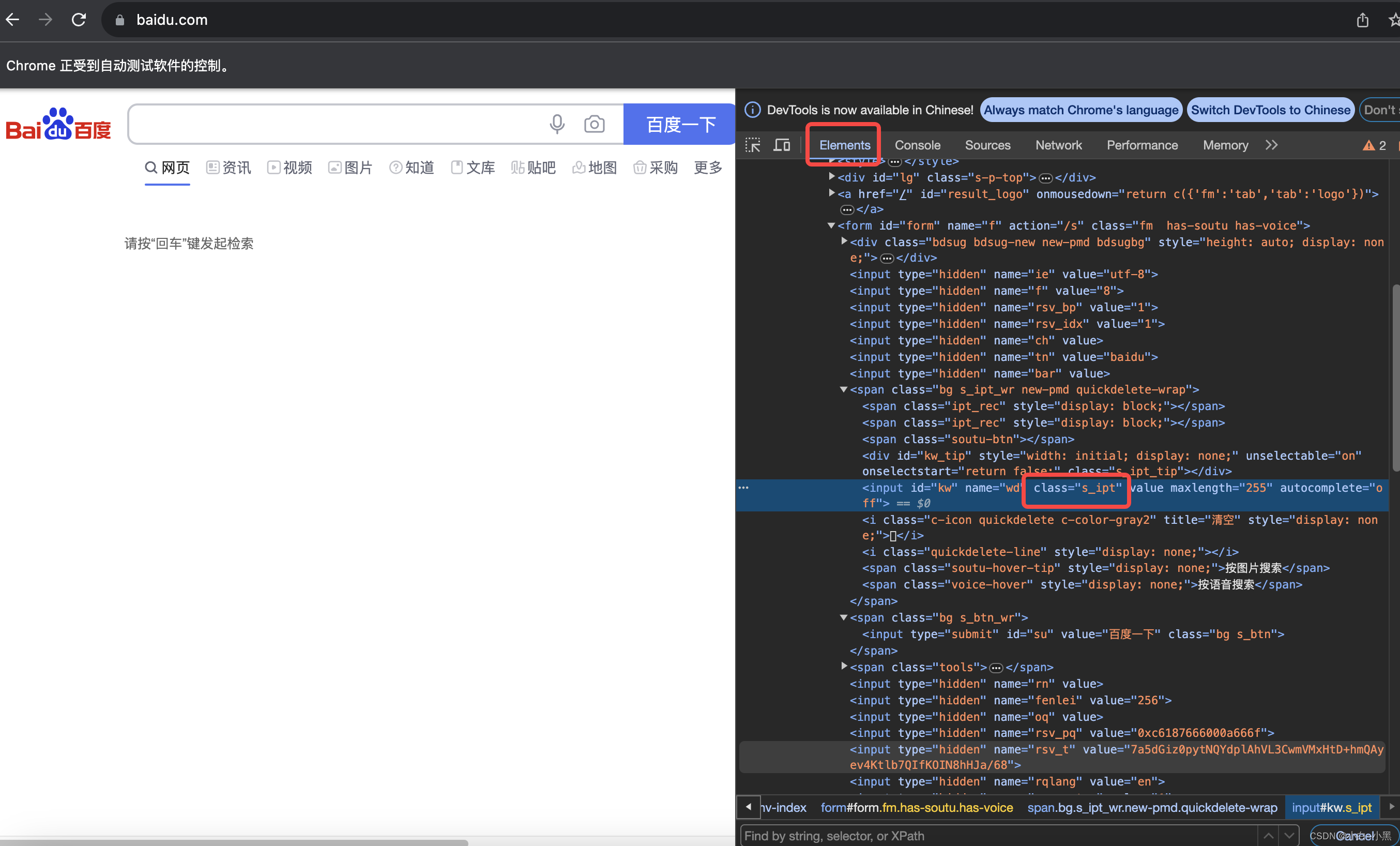

1.3.3 Locating by Class Name

• Elements with a class attribute (classes can repeat).
• Method: find_element_by_class_name(class_name) – class_name is one class value.

Code Example (by_class_name):

import time
from selenium import webdriver

browser = webdriver.Chrome()
browser.get("http://www.baidu.com")
browser.find_element_by_class_name("s_ipt").send_keys("Input located by class name")
time.sleep(3)
browser.quit()

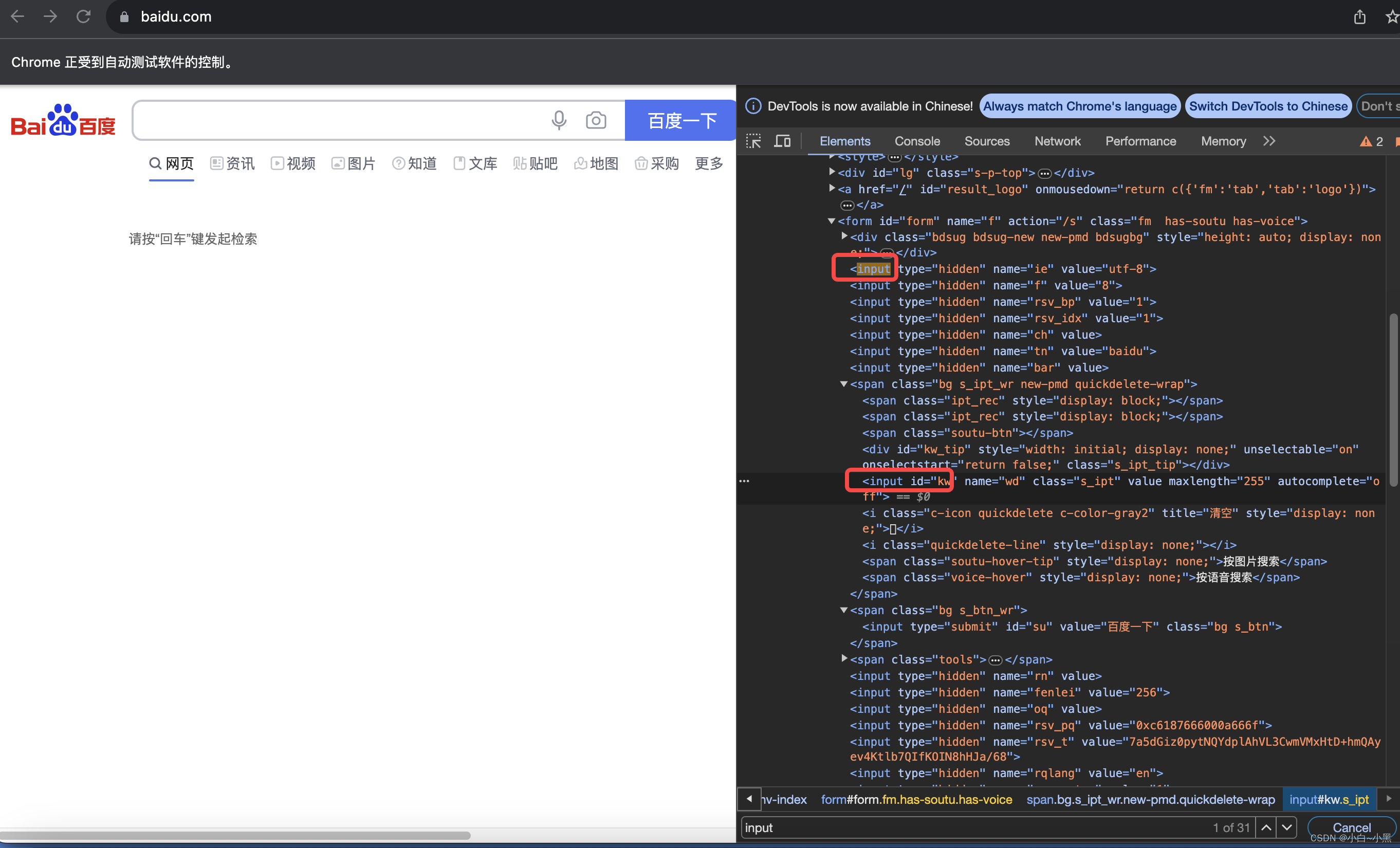

1.3.4 Locating by Tag Name

• Many elements share the same tag in a page.
• Method: find_element_by_tag_name(tag_name) – returns the first matching element.
• Often combined with find_elements_by_* (plural) to get a list and index the desired element (zero-based).

Code Example (by_tag_name):

import time
from selenium import webdriver

browser = webdriver.Chrome()
browser.get("http://www.baidu.com")
elements = browser.find_elements_by_tag_name("input")
elements[7].send_keys("This is located via a group of elements")
time.sleep(3)
browser.quit()

1.3.5 Locating by Link Text

• Primarily for anchor (<a>) tags using the full visible text.
• Method: find_element_by_link_text(link_text).

Code Example (by_link_text):

import time
from selenium import webdriver

browser = webdriver.Chrome()
browser.get("http://www.baidu.com")
browser.find_element_by_link_text("hao123").click()
time.sleep(3)
browser.quit()

1.3.6 Locating by Partial Link Text

• Locate anchor tags using a portion of the visible text.
• Method: find_element_by_partial_link_text(partial_link_text).

Code Example (by_partial_link_text):

import time
from selenium import webdriver

browser = webdriver.Chrome()
browser.get("http://www.baidu.com")
browser.find_element_by_partial_link_text("123").click()
time.sleep(3)
browser.quit()

To be continued...
