Configuration Management for SSM Integration with SpringMVC

Tools May 16 1

This article outlines the configuration files reuqired for integrating Spring, SpringMVC, and MyBatis (SSM). The steps include setting up Maven dependencies, MyBatis configuration, Spring context files for persistence and service layers, SpringMVC configuration, web deployment descriptor, and logging configuration.

1. Maven Dependencies

The folllowing pom.xml includes dependencies for Spring, MyBatis, MyBatis-Spring integration, MySQL connector, Druid connection pool, Thymeleaf, Jackson, PageHelper, and Logback.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.example</groupId>
  <artifactId>ssm-integration</artifactId>
  <version>1.0.0</version>
  <packaging>war</packaging>
  <properties>
    <spring.version>5.3.24</spring.version>
    <mybatis.version>3.5.11</mybatis.version>
    <mybatis-spring.version>1.3.1</mybatis-spring.version>
    <mysql.version>8.0.32</mysql.version>
    <druid.version>1.1.12</druid.version>
    <jackson.version>2.9.6</jackson.version>
    <pagehelper.version>5.1.10</pagehelper.version>
    <thymeleaf.version>3.0.11.RELEASE</thymeleaf.version>
    <logback.version>1.2.11</logback.version>
    <servlet-api.version>4.0.1</servlet-api.version>
    <junit.version>4.12</junit.version>
  </properties>
  <dependencies>
    <!-- Spring -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
      <scope>test</scope>
    </dependency>
    <!-- Thymeleaf -->
    <dependency>
      <groupId>org.thymeleaf</groupId>
      <artifactId>thymeleaf-spring5</artifactId>
      <version>${thymeleaf.version}</version>
    </dependency>
    <dependency>
      <groupId>org.thymeleaf</groupId>
      <artifactId>thymeleaf</artifactId>
      <version>${thymeleaf.version}</version>
    </dependency>
    <!-- MyBatis -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis-spring.version}</version>
    </dependency>
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>
    <!-- MySQL -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>
    <!-- Connection Pool -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>${druid.version}</version>
    </dependency>
    <!-- Jackson -->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>${jackson.version}</version>
    </dependency>
    <!-- Servlet API -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>${servlet-api.version}</version>
      <scope>provided</scope>
    </dependency>
    <!-- Logging -->
    <dependency>
      <groupId>ch.qos.logback</groupId>
      <artifactId>logback-classic</artifactId>
      <version>${logback.version}</version>
    </dependency>
    <!-- Test -->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
      <scope>test</scope>
    </dependency>
  </dependencies>
  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <configuration>
          <source>17</source>
          <target>17</target>
          <encoding>UTF-8</encoding>
        </configuration>
      </plugin>
    </plugins>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
      </resource>
    </resources>
  </build>
</project>

2. MyBatis Configuration (SqlMapConfig.xml)

Configure MyBatis settings, plugins (PageHelper), and log implementation. Data source and mapper scanning are delegated to Spring.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
  <settings>
    <setting name="logImpl" value="SLF4J"/>
  </settings>
  <plugins>
    <plugin interceptor="com.github.pagehelper.PageInterceptor"/>
  </plugins>
</configuration>

3. Spring Persistence Context (applicationContext-mapper.xml)

Configure data source, SqlSessionFactory, and MapperScannerConfigurer.

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">

  <context:property-placeholder location="classpath:jdbc.properties"/>

  <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
    <property name="driverClassName" value="${jdbc.driver}"/>
    <property name="url" value="${jdbc.url}"/>
    <property name="username" value="${jdbc.username}"/>
    <property name="password" value="${jdbc.password}"/>
  </bean>

  <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
    <property name="dataSource" ref="dataSource"/>
    <property name="typeAliasesPackage" value="com.example.pojo"/>
    <property name="configLocation" value="classpath:SqlMapConfig.xml"/>
  </bean>

  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    <property name="basePackage" value="com.example.mapper"/>
  </bean>
</beans>

4. Spring Service Context (applicationContext-service.xml)

Configure component scanning for service implementations, transaction management, and AOP advice.

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       https://www.springframework.org/schema/tx/spring-tx.xsd
       http://www.springframework.org/schema/aop
       https://www.springframework.org/schema/aop/spring-aop.xsd">

  <context:component-scan base-package="com.example.service.impl"/>

  <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource"/>
  </bean>

  <tx:advice id="txAdvice" transaction-manager="txManager">
    <tx:attributes>
      <tx:method name="select*" read-only="true"/>
      <tx:method name="find*" read-only="true"/>
      <tx:method name="query*" read-only="true"/>
      <tx:method name="get*" read-only="true"/>
      <tx:method name="insert*" propagation="REQUIRED"/>
      <tx:method name="add*" propagation="REQUIRED"/>
      <tx:method name="save*" propagation="REQUIRED"/>
      <tx:method name="update*" propagation="REQUIRED"/>
      <tx:method name="delete*" propagation="REQUIRED"/>
      <tx:method name="remove*" propagation="REQUIRED"/>
      <tx:method name="*" propagation="SUPPORTS"/>
    </tx:attributes>
  </tx:advice>

  <aop:config>
    <aop:pointcut id="servicePointcut" expression="execution(* com.example.service.impl.*.*(..))"/>
    <aop:advisor advice-ref="txAdvice" pointcut-ref="servicePointcut"/>
  </aop:config>
</beans>

5. SpringMVC Configuration (springmvc.xml)

Configure controller scanning, Thymeleaf template engine, annotation-driven, and default servlet handler.

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       https://www.springframework.org/schema/mvc/spring-mvc.xsd">

  <context:component-scan base-package="com.example.controller"/>

  <bean id="templateResolver" class="org.thymeleaf.spring5.templateresolver.SpringResourceTemplateResolver">
    <property name="prefix" value="/WEB-INF/templates/"/>
    <property name="suffix" value=".html"/>
    <property name="templateMode" value="HTML"/>
    <property name="cacheable" value="false"/>
    <property name="characterEncoding" value="UTF-8"/>
  </bean>

  <bean id="templateEngine" class="org.thymeleaf.spring5.SpringTemplateEngine">
    <property name="templateResolver" ref="templateResolver"/>
  </bean>

  <bean id="viewResolver" class="org.thymeleaf.spring5.view.ThymeleafViewResolver">
    <property name="templateEngine" ref="templateEngine"/>
    <property name="characterEncoding" value="UTF-8"/>
  </bean>

  <mvc:annotation-driven/>
  <mvc:default-servlet-handler/>
</beans>

6. Web Deployment Descriptor (web.xml)

Configure character encoding filter, DispatcherServlet (with SpringMVC context), and Spring application context via ContextLoaderListener.

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
         http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
  <display-name>SSM Integration</display-name>

  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
    <init-param>
      <param-name>forceRequestEncoding</param-name>
      <param-value>true</param-value>
    </init-param>
    <init-param>
      <param-name>forceResponseEncoding</param-name>
      <param-value>true</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <servlet>
    <servlet-name>dispatcher</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:springmvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>dispatcher</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext-*.xml</param-value>
  </context-param>

  <welcome-file-list>
    <welcome-file>/WEB-INF/templates/login.html</welcome-file>
  </welcome-file-list>
</web-app>

7. Database Properties (jdbc.properties)

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai&allowMultiQueries=true
jdbc.username=root
jdbc.password=123456

8. Logback Configuration (logback.xml)

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false">
  <property name="LOG_HOME" value="/var/logs/ssm"/>
  <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
    <encoder>
      <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} - %msg%n</pattern>
    </encoder>
  </appender>
  <appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
    <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
      <fileNamePattern>${LOG_HOME}/log.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
      <maxFileSize>100MB</maxFileSize>
      <maxHistory>60</maxHistory>
    </rollingPolicy>
    <encoder>
      <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%n</pattern>
    </encoder>
  </appender>
  <logger name="org.apache.ibatis" level="TRACE"/>
  <logger name="java.sql.Connection" level="TRACE"/>
  <logger name="java.sql.Statement" level="TRACE"/>
  <logger name="java.sql.PreparedStatement" level="TRACE"/>
  <root level="DEBUG">
    <appender-ref ref="STDOUT"/>
    <appender-ref ref="FILE"/>
  </root>
</configuration>

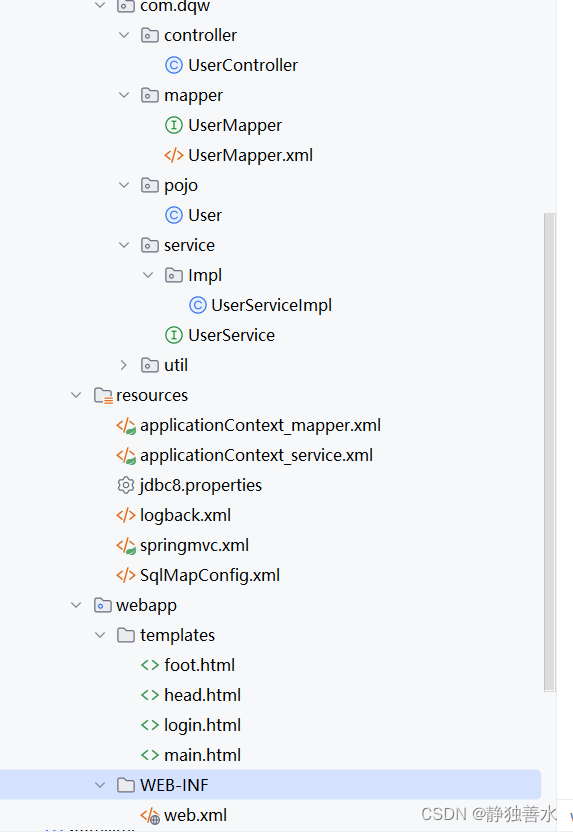

9. Directory Structure

Directory structure

Ensure the templates folder is placed under WEB-INF to avoid 404 errors. After completing these configurations, you can proceed to implement controller and service logic.

Tags: SpringMVC
Back to List

Prev: String Transformation Algorithms: Reversal, Rotation, and Space Manipulation Techniques

Next: Silent Deployment of Oracle Database 11.2.0.4 on Anolis OS 7.9

Related Articles

Efficient Usage of HTTP Client in IntelliJ IDEA

IntelliJ IDEA incorporates a versatile HTTP client tool, enabling developres to interact with RESTful services and APIs effectively with in the editor. This functionality streamlines workflows, replac...

Installing CocoaPods on macOS Catalina (10.15) Using a User-Managed Ruby

System Ruby on macOS 10.15 frequently fails to build native gems required by CocoaPods (for example, ffi), leading to errors like: ERROR: Failed to build gem native extension checking for ffi.h... no...

Resolve PhpStorm "Interpreter is not specified or invalid" on WAMP (Windows)

Symptom PhpStorm displays: "Interpreter is not specified or invalid. Press ‘Fix’ to edit your project configuration." This occurs when the IDE cannot locate a valid PHP CLI executable or when the debu...

Leave a Comment

Anonymous

◎Feel free to join the discussion and share your thoughts.

Copyright © fadingcoder.top
